Select the outer diameter
Start from the machine port, connector and required routing envelope.
BROAD SIZE COVERAGE · PA6 SERIES
Choose the diameter and wall thickness for the application.
PA6 nylon pneumatic tubing for industrial air-line selection, organized by outer diameter, wall thickness, coil format and reference production weight.
PA6 nylon3–20 mm OD26 combinations4 documented colors

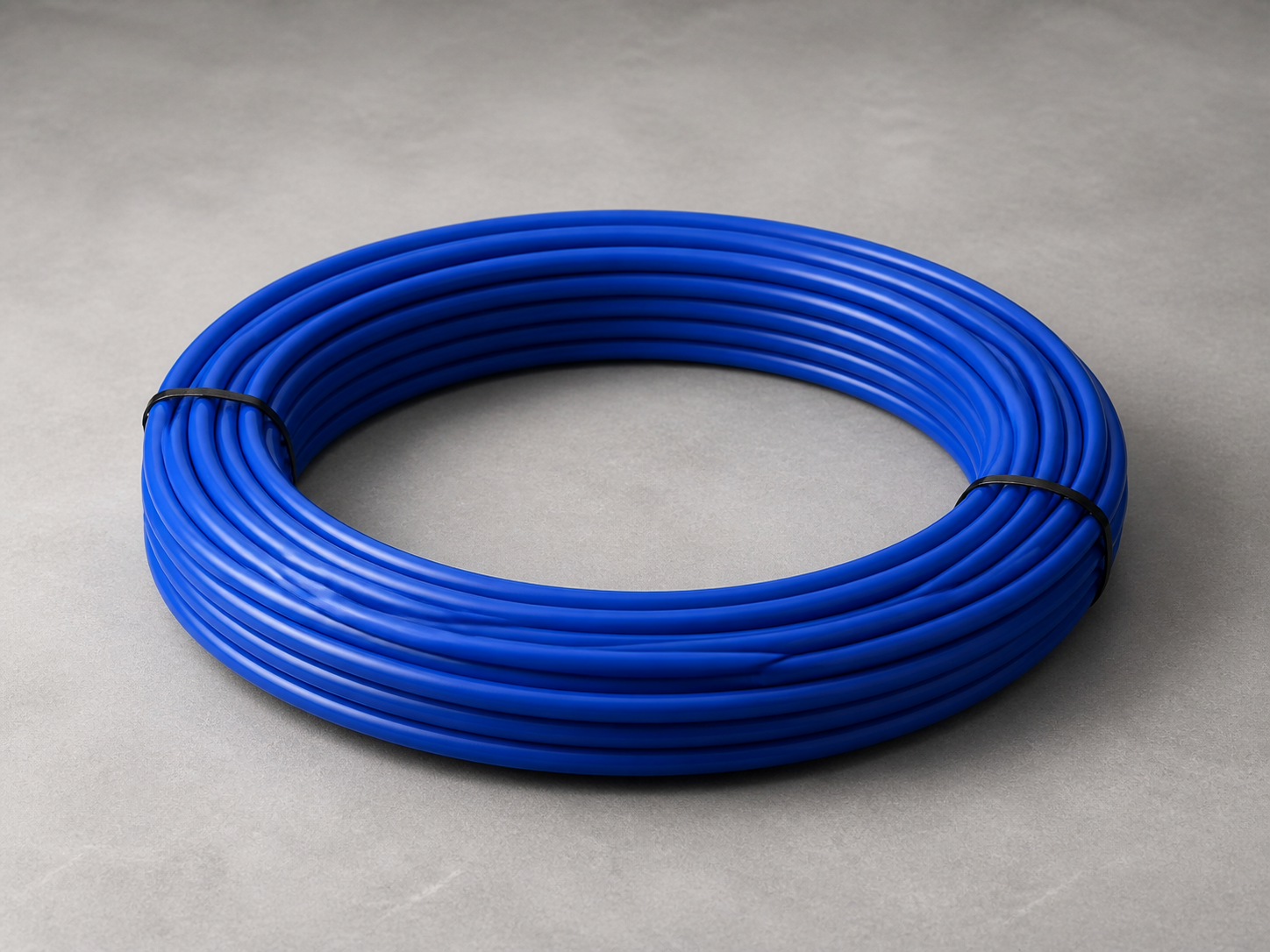

Single PA6 coil · three-quarter viewSelect the wall thickness
Several diameters are available with multiple walls for different duty requirements.
Confirm the current rating
Pressure and temperature are checked against the exact model and current tube marking.
PRODUCT VIEWS

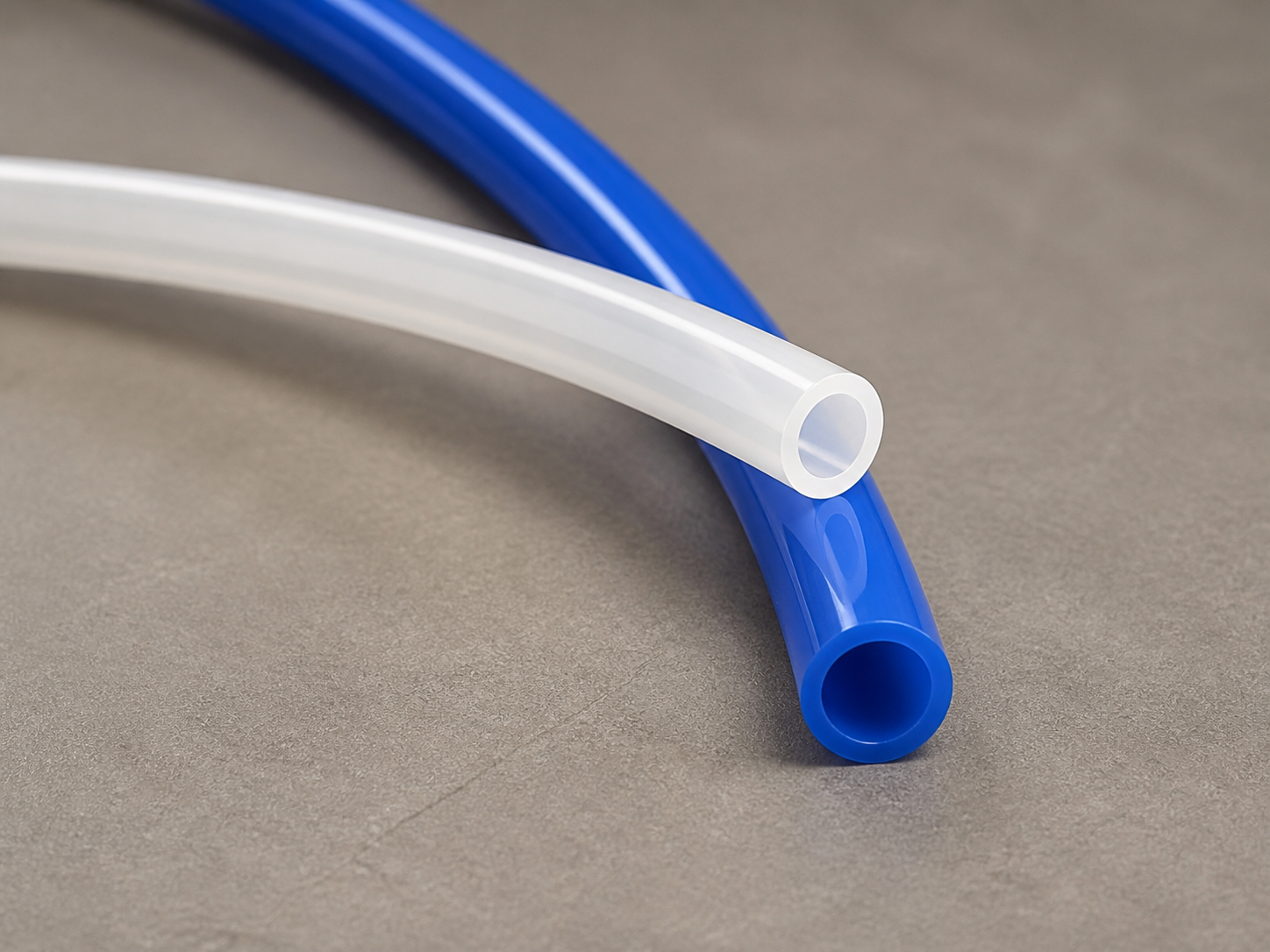

A closer look at PA6 tube form, bore and stocked coils.
The page now moves from one clean product coil to the tube-end structure, paired production colors and factory coil stock without publishing old markings as current ratings.
MODEL-FIRST SELECTION
PA6 is a family—not one universal pressure claim.
Factory materials currently show more than one historic rating convention. The public page therefore publishes the verified range and packing data while the final pressure and temperature rating is supplied with the selected current model.
MaterialPA6 nylon
Working mediumCompressed air; other media require review
Published metric range3 mm to 20 mm OD
Documented colorsNatural white, black, blue, red
Standard coil format100 m through 12 mm OD; 50 m from 14 mm OD
Rating notePressure and temperature confirmed by size, wall and current batch
PA6 PRODUCTION MATRIX
26 documented size and wall-thickness combinations.
Weights are factory reference net weights with ±0.15 kg tolerance. Carton quantity is shown as coils per carton; final gross weight and carton dimensions are confirmed per order.
| PA6 size · OD × wall | Standard coil | Reference net weight | Reference carton quantity |
|---|---|---|---|
| PA6 3×2 | 100 m | 0.44 kg | 20 coils |
| PA6 4×0.75 | 100 m | 0.80 kg | 16 coils |
| PA6 4×1 | 100 m | 1.00 kg | 16 coils |
| PA6 5×1 | 100 m | 1.30 kg | 15 coils |
| PA6 6×1 | 100 m | 1.80 kg | 10 coils |
| PA6 6×1.5 | 100 m | 2.40 kg | 10 coils |
| PA6 6×2 | 100 m | 2.84 kg | 10 coils |
| PA6 8×1 | 100 m | 2.50 kg | 10 coils |
| PA6 8×1.25 | 100 m | 2.80 kg | 10 coils |
| PA6 8×1.5 | 100 m | 3.40 kg | 10 coils |
| PA6 8×2 | 100 m | 5.68 kg | 10 coils |
| PA6 10×1 | 100 m | 3.30 kg | 7 coils |
| PA6 10×1.25 | 100 m | 4.00 kg | 7 coils |
| PA6 10×1.5 | 100 m | 4.60 kg | 7 coils |
| PA6 10×1.75 | 100 m | 5.10 kg | 7 coils |
| PA6 10×2 | 100 m | 5.68 kg | 7 coils |
| PA6 12×1 | 100 m | 4.10 kg | 6 coils |
| PA6 12×1.5 | 100 m | 5.60 kg | 6 coils |
| PA6 12×2 | 100 m | 7.10 kg | 6 coils |
| PA6 14×1.5 | 50 m | 3.50 kg | 7 coils |
| PA6 14×2 | 50 m | 4.26 kg | 7 coils |
| PA6 16×1.5 | 50 m | 4.10 kg | 7 coils |
| PA6 16×2 | 50 m | 4.97 kg | 7 coils |
| PA6 18×1.5 | 50 m | 4.39 kg | 5 coils |
| PA6 18×2 | 50 m | 5.68 kg | 5 coils |
| PA6 20×1.5 | 50 m | 4.92 kg | 5 coils |
| PA6 20×2 | 50 m | 6.39 kg | 5 coils |
Inch-reference 1/4 and 3/8 formats and a separate PA12 family were documented in domestic SKU records; they remain outside this PA6 table until their current export specification is reconciled.
RFQ CHECK
Send the application—not only the tube size.
01 · REQUIREDTube OD × wall thickness
02 · REQUIREDPressure, temperature and medium
03 · REQUIREDColor, coil length, quantity and destination
We will return the current model marking, rating, packing and matching fitting recommendation with the quotation.
Prepare a PA6 RFQREADY FOR A SPEC CHECK?
